Ellsworth Adhesives is delighted to announce the addition of the new Fisnar Advance series of benchtop dispensing robots & accessories to its extensive dispensing product range.
This exciting new robotics collection significantly upgrades Fisnar’s existing F4000N range with enhanced product features and the addition of three completely new models, plus multiple size variations to accommodate customers’ diverse spectrum of dispensing requirements. The F4000 Advance Series contains a total of 4 Models – 3 Axis, 4 Axis, 5 Axis and a Dual Table Robot option.
The core function of all F4000 Advance benchtop dispensing robots is to ensure precise fluid placement and positioning. When configured with a syringe, cartridge or valve system, F4000 Advance robots achieve the highest level of positional accuracy and repeatability. Additional features include a USB port for data transfer and back-up, program selector switch and fluid purge button.
The F4000 Advance supporting software is user friendly and enables the creation of complex dispensing routines – such as dots, lines, circles, arcs and fills – that can be set up and operational using the included teach pendant. Furthermore, Fisnar’s proprietary programming software is Microsoft Windows based and gives users the opportunity to import DXF files into the robot program, allowing dispense lines or dots to be quickly created from the imported CAD data in the software. This capability dramatically reduces programming time for complex dispense patterns, or when there is a high number of dispense positions.

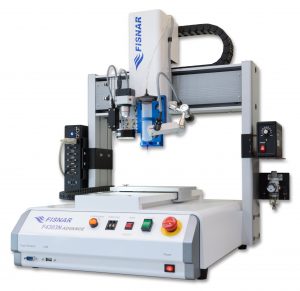

A stand-out feature of the F4000 Advance robot platform is that has been designed to accommodate a range of bolt-on robot accessories, easily attached to its modular connectivity back-panel. Robot accessories are excellent tools for improving efficiency even further and options include input/output (I/O) expansion module, auxiliary rotation axis, CCD Camera vision system, remote operation box, height sensor, tip alignment module and a tip adjustment kit.
The 3 axis and 4 axis models are available in four sizes from 300 x 300 mm through to 600 x 500 mm. The 5 Axis robot has a working area of 500 x 500 mm and provides both a rotational vertical axis and a horizontal axis for applying adhesives and sealants on curved, vertical or difficult to reach applications. Finally, the dual table robot allows for high speed manufacturing due to the elimination of part changeover and loading time. This is made possible with the removal of finished parts and the loading of new parts on the fixture of one table, while the other table is being processed by the robot.
Enquire Now about the Fisnar F4000 Advance Series from Ellsworth Adhesives.
