Additional information
| Manufacturer part no. | STTC-025 |
|---|---|
| Size | 1.0mm |
| Sold in quantity of | 1 |
| Normally ships within | 6 Weeks |

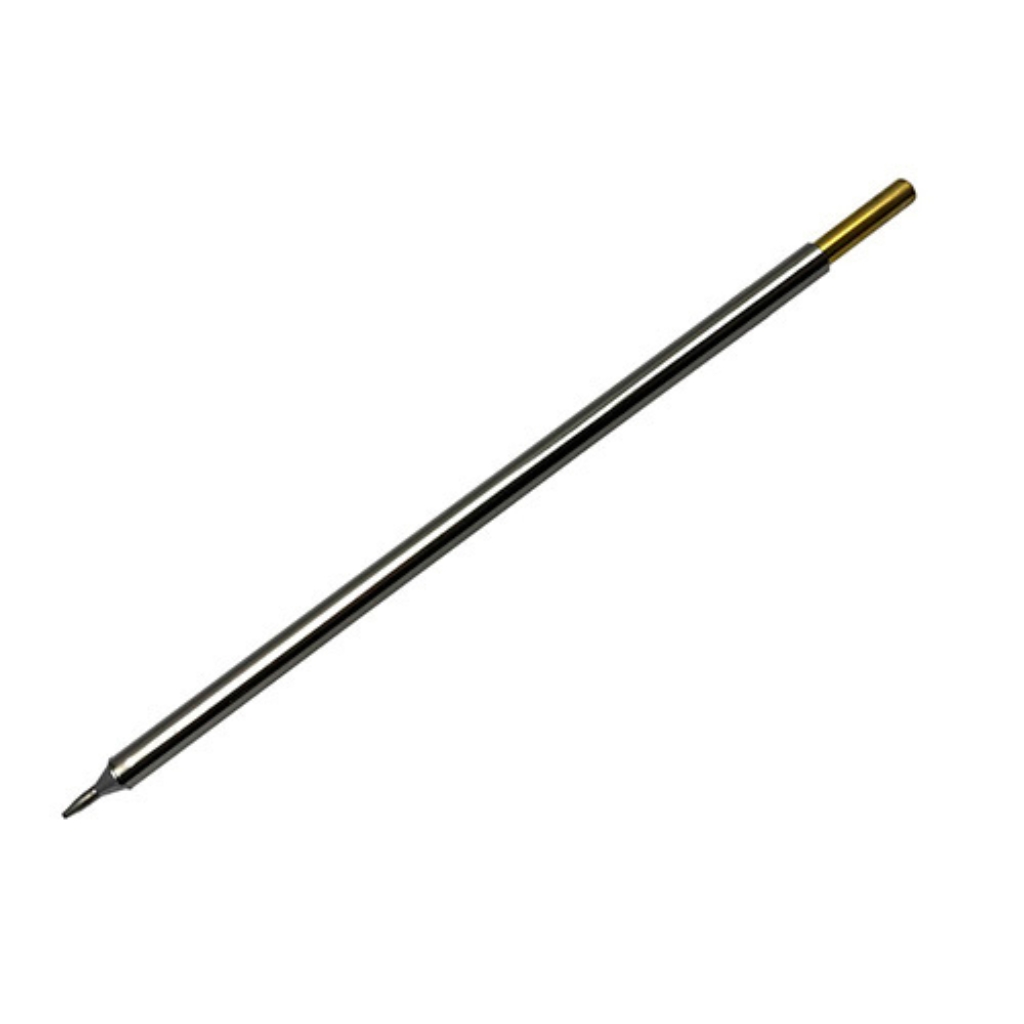

Metcal STTC-025 Chisel Soldering Tip
Metcal STTC-025 is 30° chisel tip is a soldering cartridge that is used with the MX-500, MX-5000 and MX-5200 systems, with MX-RM3E and MX-H1-AV hand pieces. It offers a variety of tasks for through hole and SMD rework. It offers a variety of tasks for through hole and SMD rework. Metcal recommends the 600-series for light load or low temperature applications.
Features & Benefits:
- 1mm x 9.1mm
- 30° chisel tip
- The 600-series have a temperature range up to 330°C
- Can be used with leaded and lead-free solder
- Metcal "SmartHeat Technology" automatically adjusts power levels during each soldering operation
SmartHeat Process Control:
The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.
