Additional information
| Manufacturer part no. | STTC-040 |
|---|---|
| Size | 0.4mm |
| Sold in quantity of | 1 |
| Normally ships within | 5 Weeks |

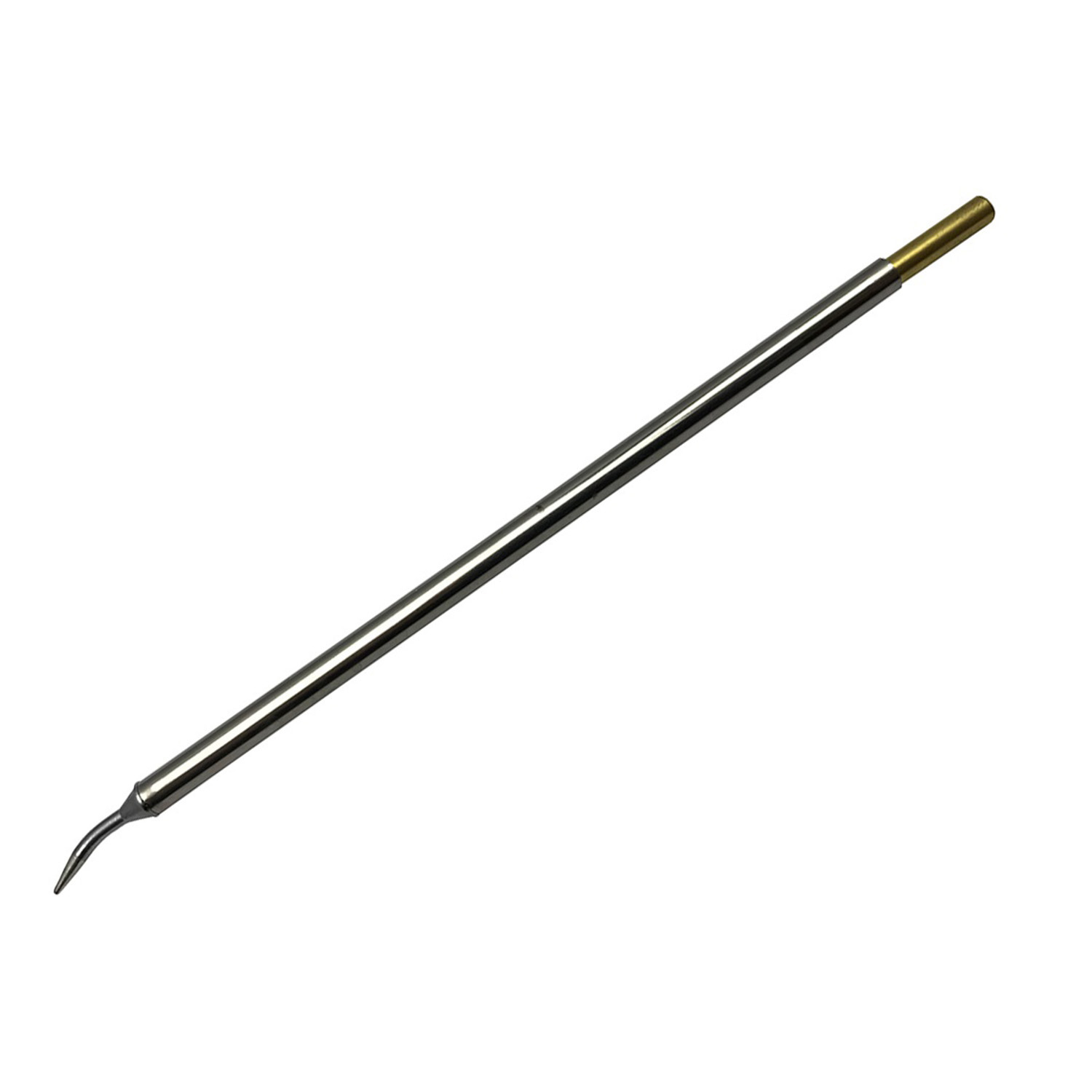

Metcal STTC-040 Conical Bent Soldering Tip
Metcal STTC-040 is a 30° conical sharp bent narrow tip soldering cartridge that is used with the MX-500, MX-5200 and MX-5000 systems, with MX-RM3E and MX-H1-AV hand pieces. It offers a variety of tasks for through hole and SMD rework. Metcal recommends the 600-series for applications that are light load or low temperature.
Features & Benefits:
- 0.4mm x 16mm
- Conical sharp bent narrow tip
- The 600-series have temperature range up to 330° C
- Can be used with leaded and lead-free solder
- Metcal "SmartHeat Technology" automatically adjusts power levels during each soldering operation
SmartHeat Process Control:
The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.
