Additional information
| Manufacturer part no. | STTC-116 |
|---|---|
| Size | 0.5mm |
| Sold in quantity of | 1 |
| Normally ships within | 5 Weeks |

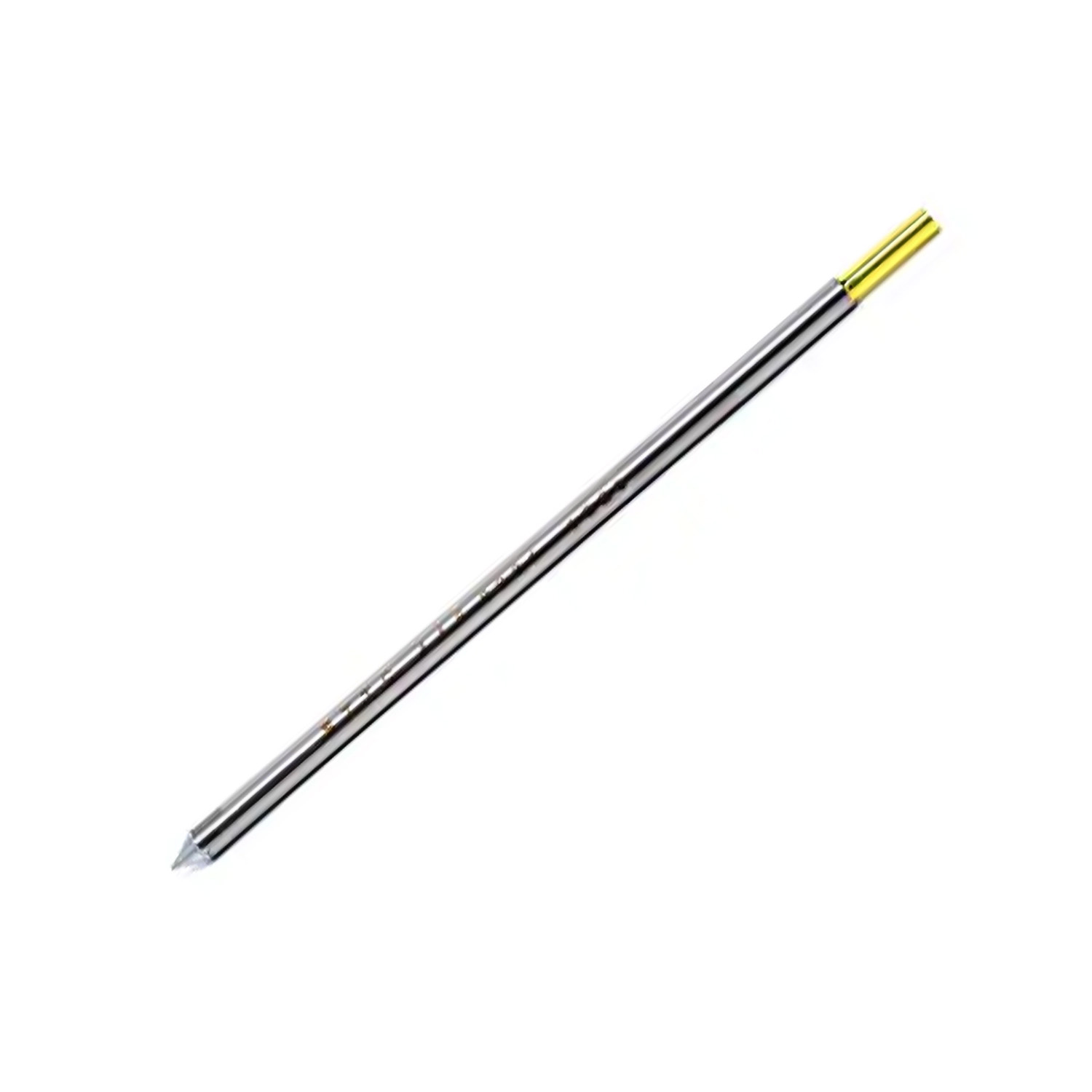

Metcal STTC-116 Conical Sharp Solder Tip
Metcal STTC-116 is a conical sharp tip soldering cartridge that is used with the Metcal MX-500 and MX-5200 series soldering system. It offers a variety of tasks for through-hole and SMD rework. Metcal recommends the 700-series for the majority of applications.
Features & Benefits:
- 0.5mm x 4.8mm
- Conical sharp tip
- The 700-series have a temperature range up to 390°C
- Can be used with leaded and lead-free solder
- Metcal "SmartHeat Technology" automatically adjusts power levels during each soldering operation
SmartHeat Process Control:
The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.
