Additional information
| Manufacturer part no. | STTC-125 |
|---|---|
| Size | 0.8mm |
| Sold in quantity of | 1 |
| Normally ships within | 5 Weeks |

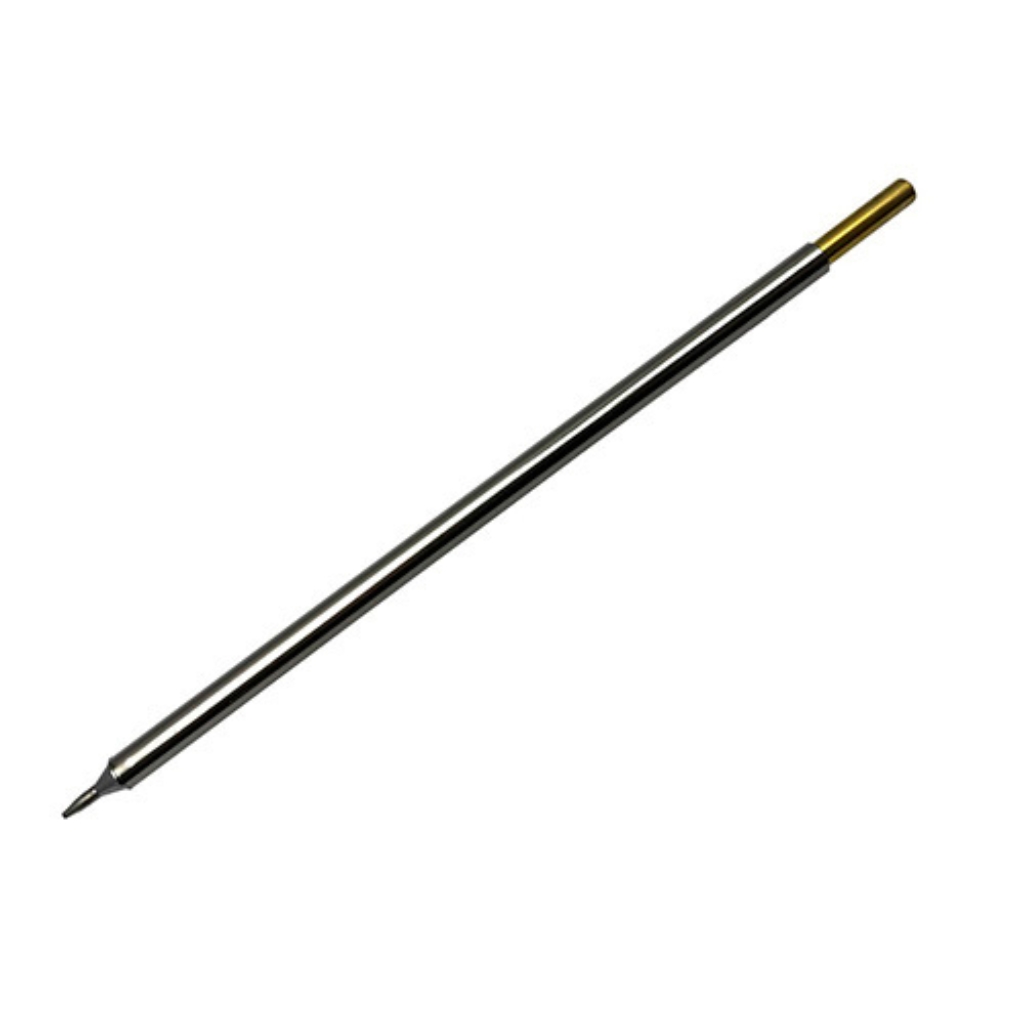

Metcal STTC-125 Chisel Solder Tip
Metcal STTC-125 is a chisel tip soldering cartridge that is used with the MX-500, MX-5000 and MX-5200 systems, with MX-RM3E and MX-H1-AV. It offers a variety of tasks for through hole and SMD rework. Metcal recommends the 700-series for the majority of applications.
Features & Benefits:
- 1mm x 9.1mm
- Chisel tip
- The 700-series have a temperature range up to 390°C
- Can be used with leaded and lead-free solder
- Metcal "SmartHeat Technology" automatically adjusts power levels during each soldering operation
SmartHeat Process Control:
The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.
